High-capacity deck barge suitable for large-scale offshore and cargo operations.
Reference: SWBDeckandTankBarge
Year Built
2013/2014
Size
400 ft × 120 ft × 25 ft
Location
Batam, Indonesia
High-capacity deck barge suitable for large-scale offshore and cargo operations.
Reference: SWBDeckandTankBarge
Location
West Africa area of Cameroon
Type
Deck Cargo and Ballast Tank Barge
Year
2012
Flag/Port of Registry
United States of America
Class
American Bureau of Shipping / A1, Barge
GRT / NRT
5974 / 1792
Length Overall
330.2 ft / 100.65 m [Art. 2(8): 96.62 m (317 ft)]
Breadth Moulded
120 ft. / 36.58m
Depth-Moulded
20 ft. / 6.10m
Deadweight
12,814.5 LT
Deck Loading
25 tonne per square metre
Mooring Bollards
8 x double bitts 12” N.B. Pipe (recessed)
Towing brackets
2 sets of "Smit" 100T SWL fitted forward and aft
Anchor Winch
1 x 5-ton capacity hand-operated winch
Anchor
3 rows, 250 mm Ø Sch. 80 half-round pipes fitted on port and starboard sides.
Manhole
1 flush manhole for each tank 500mm dia with galvanished cover “T” bolt type.
Navigation Lights
One set of navigation lights
All-welded steel construction with a flush main deck, fitted with twin skegs at the stern.
Transverse Bulkhead: seven (7) transverse bulkheads (watertight)
Reference: SWB-3337
Location
West Africa, area of Cameroon
Type
Deck Cargo Barge
Year
2007
Flag/Port of Registry
United States of America
Class
ABS/ A-1 Barge
GRT / NRT
2225 / 667
Length Overall
205 ft. / 76.2m
Breadth
80 ft. / 24.38m
Depth
16 ft. / 4.88m
Max Draft
12.68 ft. / 3.92m

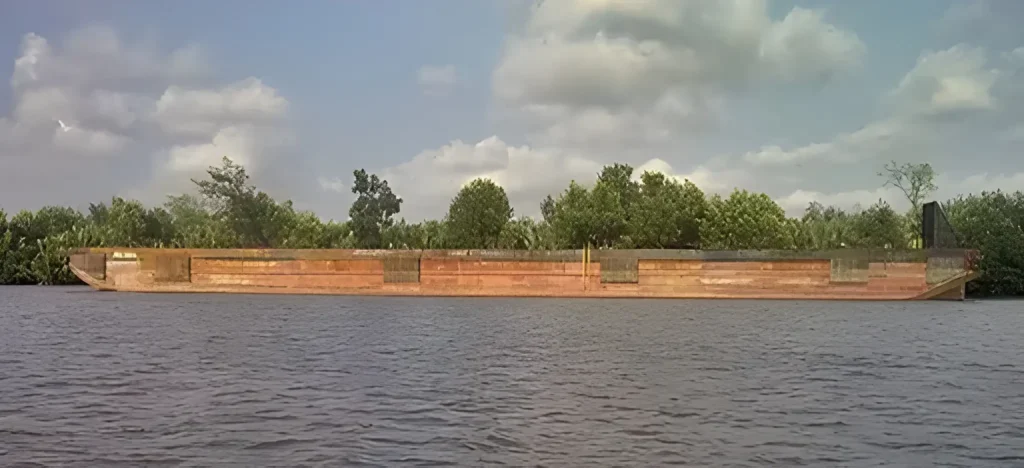

Reference: SWB-2514
Location
West Africa Area of Cameroon
Type
Classed-deck barge
Size
300x100x18
Year
2006
Flag
United States of America
Max. Draft
13.71 ft. / 4.17m
Deck Load
4000 lb/ft2
GRT/NRT
4126 / 1237
Deadweight
8382 LT
Light Ship Wt
2021 LT (2054 metric tons) approx.
Deck Loading
4000 pounds/square foot (20 metric tons/square meter) approx.
Reference: SWB-3004
Location
West Africa area of Cameroon
Type
Deck Barge
Year
2008
Flag/Port of Registry
United States of America
Class
ABS / A-1 Barge
GRT / NRT
3527 / 1058
Length Overall
300 ft. / 91.44m
Breadth
090 ft. / 27.43m
Depth
018 ft. / 5.48m
Max Draft
014.08 ft. / 4.28m
Light Ship Wt
1395.3 LT (1417.6 metric tons) approx.
Cargo Capacity at Max Load Line
8265 LT (8397 metric tons) approx.
Deck Loading
3000 pounds/square ft (15 metric tons/square m) approx.
Reference: SWB-3007
Location
West Africa area of Cameroon
Type
Deck Cargo Barge (Tanks Suitable for Carrying Ballast Water)
Year
2007
Flag/Port of Registry
United States of America
Class
ABS / A-1 Barge
GRT / NRT
2305 / 691
Length Overall
250 ft. / 76.2m
Breadth
80 ft. / 24.38m
Depth
16 ft. / 4.88m
Max Draft
11.9 ft. / 3.63m Approx.
Light Ship Wt
1125 LT (1143 Metric Tons) Approx.
Cargo Capacity at Max Load Line
4965 LT (5044 Metric Tons) Approx.
Deck Loading
4000 pounds / square foot (20 metric tons/square meter) Approx.
Reference: SWB-2510
Location
West Africa area of Cameroon
Year
2008
Flag/Port of Registry
United States of America
Class
ABS / A-1 Barge
GRT / NRT
3527 / 1058
Length Overall
300 ft. / 91.44m
Breadth
090 ft. / 27.43m
Depth
018 ft. / 5.48m
Max Draft
014.08 ft. / 4.28m
Light Ship Wt
1395.3 LT (1417.6 metric tons) approx.
Cargo Capacity at Max Load Line
8265 LT (8397 metric tons) approx.
Deck Loading
3000 pounds/square ft (15 metric tons/square m) approx.

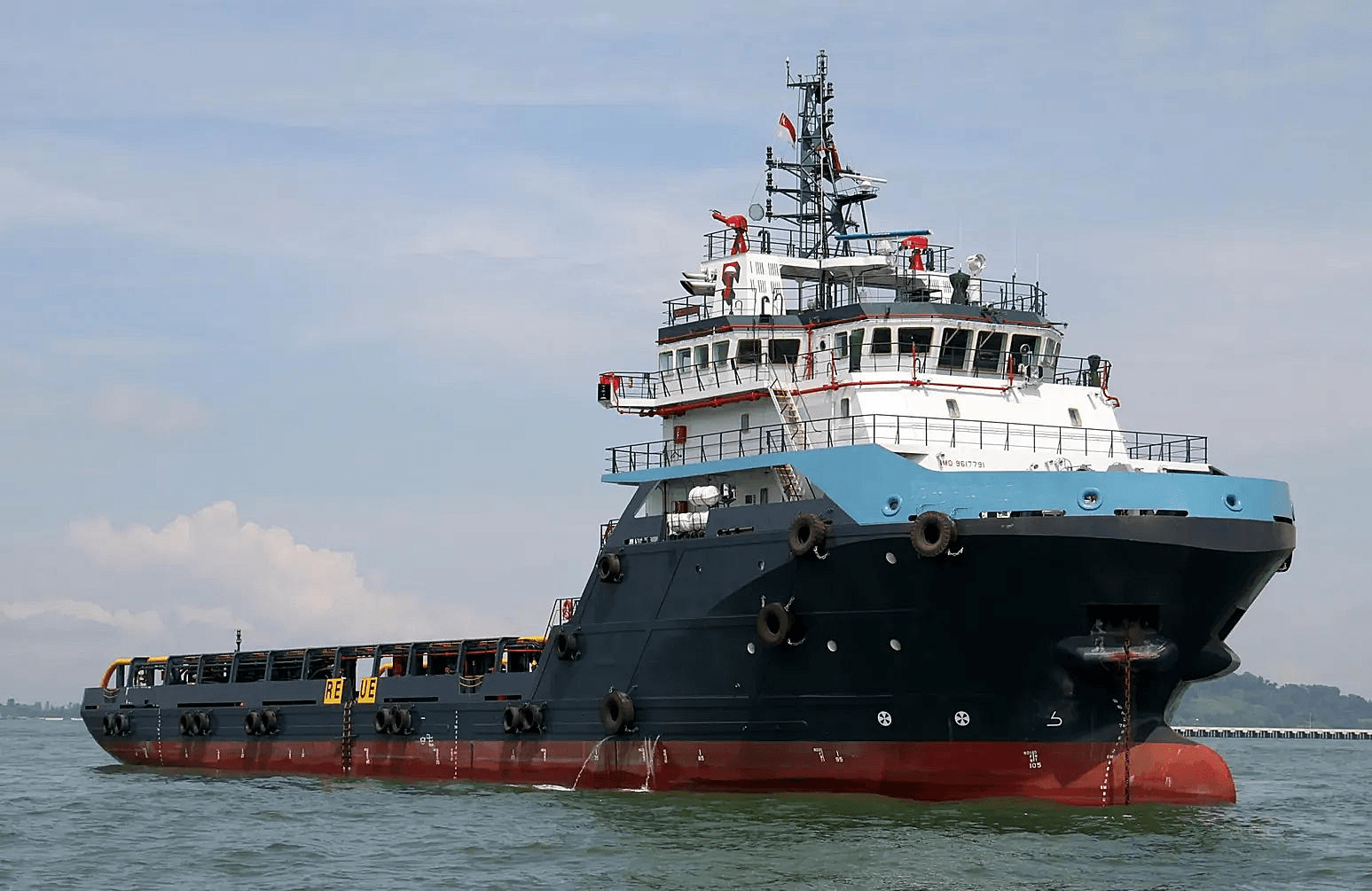

Reference: SWB-3008
Length overall
246 ft./ 75m
Beam
59.1 ft / 18m
Depth
23 ft. / 07m
Max. Draft
19 ft / 5.8m
Light Draft
9.2 ft. / 2.8m
Min. Height
81.3 ft. / 24.8m
Freeboard
3.9 ft. / 1.2m
Displacement
5,700 lt/ 5,800 mt
Deadweight
3,380 lt. / 3,440 mt
Clear Deck Sp
159x49 ft. / 49x15 m
Deck Strength AFT
1,020 lb/ft² / 5 t m²
Class Notations
ABS + A1, FFV-OSV, (E), +AMS, +DPS-2
Deck Cargo
1,130 lt / 1,150 t
Fuel Oil
170,000gals / 640 m³
Potable Water
159,000 gals / 600 m³
Drill/Bal. Water
379,000 gals. / 1,440m³
Bulk Tanks (4)
8,120 ft³ / 230m³
Liq. Mud (2.5 SG*)
4,390 bbl / 700m³
Base Oil
840 bbl / 130m³
Brine
1,200 bbl / 190m³
Oil Dispersant
3,630 gals. / 13.8m³
Fire Ft. Foam
6,160 gals. / 23.3m³
Main EngS/. (2)
Niigata 8L28HX
Total HP
5,920
Z-Drives
Yes
Kort Nozzles
2
Pri. Gens. (4)
590Kw/440v/60hz
Driven by
CAT 3412C
Bow Thruster (2)
Nakashima TCT-135
Driven by
520kW Electric Motors
Total Thrust
174 st / 15.8 mt.
Maximum
18.2 m³/day / 200 gph @ 13 knots
Cruising
10.3 m³/day (110 gph @ 10.5 knots
Econo
6.6 m³/day (73 gph) @ 8 knots
Standby
1.5 m³/day (16.5 gph) @ 0 knots
Range @ 10.5 knots
15,800 nm
Fuel Oil
440 gpm @ 260 ft. / 100m³/h @ 80m
Pot. Water
440 gpm @ 260 ft. / 100m³/h @ 80m
Drill/Bal. Wat
440 gpm @ 260 ft. / 100m/h @ 80m
Bulk
33.8 cfm @ 230ft./ 57.4m³/h @ 71m
Liq. Mud
330 gpm @ 260ft. / 75m³/h @ 80m
Brine
220 gpm @ 260ft./ 50m³/h @ 80m
Anchors (2)
5820 lbs AC-14
Anchor Chain
270m of 46mm chain per side
Windlass
ME 10.6 THWL
Crane (1)
1.8 t @ 14m
Aux. Crane (1):
5 t @ 10.1m
Capstans (2)
5 t ME 5THVO
Tugger (2)
10 t ME 10THGW
Radars
2
Depth Sounder
1
Gyro Compass
3
Wind Sp. Ind
3
Doppler Log
1
Radio
2xVHF / 2xSSB
Sat Com
FLEET BROADBAND 500
No. of berths
50
Cabins
8x1/9x2 & 6x4 man
Certified to Carry
50
Galley Seating
24
Hospital
YES
Flag
Mexico
Home Port
TBA
Hull No
1367
Year Built
2010
Builder
JINGJIANG NANYANG
Tonnage
2921-GT / 876 NT
Firefighting
FiFi-1
Dynamic Positioning
DP-2
Ref Systems
2 x MRU, # x DGPS, 1 x microwave-based, 1 x laser-based
Water Maker
1 x 25T/DAY
Mud Circulation System
YES
Mud Mixers
YES
Rescue Zone
YES
Rescue Boat
6-MAN MOB, SOLAS APPROVED
Fuel Monitoring
FUELTRAX
Misc
MSD – 65 Persons

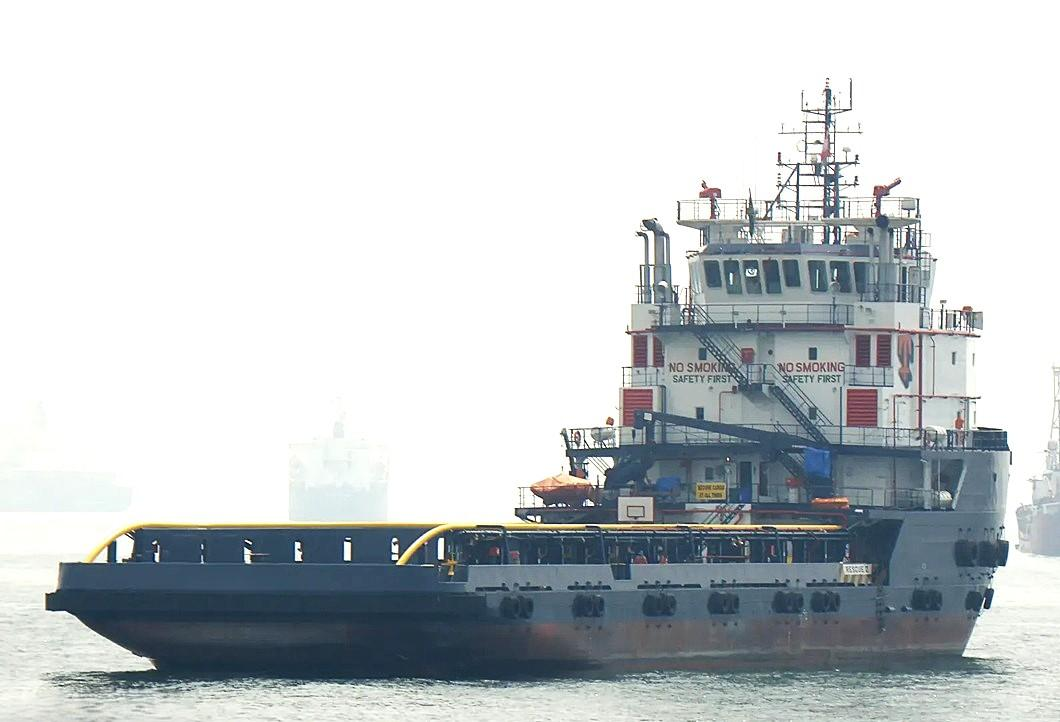

Length overall
246.1 ft. / 75m
Beam
56.8 ft. / 17.3m
Depth
26.3 ft. / 8m
Max. Draft
21.3 ft. / 6.5m
Light Draft
11.2 ft. / 3.4m
Min. Height
87.6 ft. / 26.7m
Freeboard
4.9 ft. / 1.5m
Displacement
5,510 lt. / 5,600 mt.
Deadweight
3,299 lt. / 3,250 mt.
Clear Deck Sp
151 x 47 ft. / 46 x 14m
Deck Cargo
1,180 Lt. / 1,200 t
Fuel Oil
260,000 gal / 980 m³
Potable Water
31,100 gal. / 120 m³
Fresh Water
111,000 gal / 420 m³
Drill/Ballast Water
426,000 gal / 1,610 m³
Bulk Tanks (4-Tanks)
7,850 ft³ / 220 m³
Liquid Mud (2.5 SG*)
3,920 bbl / 620 m³
Oil Dispersant
3,330 gal / 12.6 m³
Fire Ft. Foam
3,330 gal / 12.6 m³
Main EngS/. (2)
Niigata 8L28H
Total HP
6000
Z-Drives
Yes
Propellers (2)
NIIGATA AP-41, FIXED
Driven by
CAT C18
Secondary Gens. (2)
1000 kw / 410 v / 50 hz
Driven by
main Engine
Emergency Gens: (1)
80 kw / 410 v / 50 hz
Driven by
Cat C4.4
Bow Thruster (2)
Kawasaki KT-88B3 CPP
Driven by
650 kW Electric Motor
Total Thrust
21.8 st / 19.8 mt
Maximum
22.7 m³/day (250 gph @ 13 knots)
Cruising
18.2 m³/day (200 gph @ 10 knots)
Econo
13.6 m³/day (150 gph @ 8 knots)
Range @ 8 knots
13,900 nm
Fuel Oil:
660 gpm @ 260 ft / 150m³/h @ 80 m
Fresh Water
440 gpm @ 280 ft / 100 m³/h @ 85 m
Drill/Bal. Wat
440 gpm @ 260 ft / 100 m/h @ 80 m
Bulk
33 cfm @ 200 ft./56 m³//h @ 60 m
Liq. Mud
330 gpm @ 300 ft / 75 m³/h @ 90 m
Anchors (2)
4,365 lbs HHP
Anchor Chain
4.70 m of 46 mm chain per side
Windlass
Plimsoll 13t@18m/min
Crane (1)
3t @ 9.8 m
Capstans (2)
10t Mentrade 24 m/min
Tugger (2)
10t Mentrade 24 m/min
Radars
2
Depth Sounder
1
Gyro Compass
3
Wind Sp. Ind
3
Doppler Log
1
Radio (2)
VHF
No. of berths
50
Cabins
10x1-man & 20x2-man
Certified to Carry
50
Galley Seating
23
Hospital
YES
Flag
Mexico
Home Port
TBA at Inspection
Hull No
5
IMO
TBA at Inspection
Year Built
2012
Call Sign
TBA at Inspection
Builder
FUJIAN SOUTHEAST SHIPYARD
Tonnage
2899 GT / 869 NT
Firefighting
FiFi-1
Dynamic Positioning
DP-2
Ref Systems
3xMRU, 2xDGPS 1x microwave-based: 1x laser-based
Water Maker
2x10T/DAY
Mud Circulation System
YES
Mud Mixers
YES
Rescue Zone
YES
Rescue Boat
6 Man SOLAS Approved
Fuel Monitoring
FUELTRAX
Reefer Sockets
1x 415V 63A, 5x 415V 32A; 2x 220V 32A
SPS Compliant
YES
Misc
MSD-50 PEOPLE
